The most innovative tool for Bolt Torquing

TCLA Website logo.png

Our Product

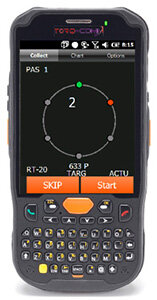

COMMANDER XT1000


  • Rugged IP65 Handheld (Class 1 Div 2)

  • Real time data collection

  • Unlimited, user-defined traceability

  • Flexible user management and operating modes

  • User defined bolt pattern management per ASME PCC-1-2013

  • Password enabled roles and privileges

  • Multiple interface potential—leak detectors, calipers, hydrostatic test, flow meters, ultrasonics

  • Configurable out of tolerance alerts

  • Non-editable data (what you see is what you get)

  • Ability to change tools from bolt to bolt or from pass to pass

  • Supervisor required overrides option for non-conforming data

  • Management notifications by email or text

  • Adaptable to ANY hydraulic pump (AC or air) using ANY hydraulic torque wrench

Commander Software & Storage


  • Global live viewing, analysis, and job creation for production control

  • Collected results can be pushed immediately to our cloud based server

  • Production and repair reports

  • A library of bolting standards for Commander XT access

  • PDF reports of all job related information

  • CSV export


TorqCommBrochure5-web-individual (1).jpg

Commander XT2000

Enerpac ZU4 with Control Module.png

  • All the capabilities of the XT1000

  • Wirelessly controls any pump from up to 80 feet away in as few as 5 seconds

  • Precision control of the pump without violating the manufacturer’s warranty

  • Battery operated control board with indicator lights to show operation and battery status

  • Upgrade available to the world’s only PDA with global explosion protection and mining approval (ATEX Certified)



Tohnichi Torque Wrenches

  • Tohnichi CEM-BTA digital torque wrench with Torque & Angle monitoring

  • Angle monitoring at the peak tightening torque or measured torque value

  • Up to 850 Nm or 620 lbf

  • Judgement function by Torque and Angle

TORQTAG®

0 (1).png

  • 28 & 56 clearly numbered magnetic discs

  • Replaces chalk or pen marking flanges

  • Choice of three colours

  • Greatly improves visual reference

  • Bar coded for scanning and identifying each bolt

  • Can be mounted on the stud or flange

  • Removed once each torque figure is achieved

  • Can be stacked for multiple passes

  • Avoids confusion and reduces the likelihood of leaks



  • Torque Value and Angle Data are transferred by Bluetooth

  • Wireless duplex communication sends Hi/Lo limit torque and angle settings to the wrench then sends the collected data back to Commander XT

The innovative Commander process control systems from Torq-Comm consist of four models of rugged, industrial strength, handheld PC’s specifically designed for use in industrial bolting applications. The XT1000 series is designed for process control and data collection. The XT2000 series includes this while remotely controlling the pressure adjustments on the pump. Due to the explosive environments often found in such applications, the XT1000/2000 EXP units are safety compliant, meeting the requirements of the ATEX directive. As more and more customers insist upon full traceability for every bolted joint on each of their assets, it is becoming increasingly more important to have reliable hardware and software solutions to gather, store, and process appropriate data. With three modes of job creation, depending upon operator experience, work instructions in the palm of their hand, and the ability to remotely and wirelessly (Wi-Fi, Bluetooth, 3G/4G) set and reset the pressure level from up to forty feet away in as little as five seconds, this patented product is revolutionizing the industrial bolting market. The real time, cloud-based data storage allows a supervisor in London to monitor a bolting operation in Dubai, as it happens, on his computer. The QR/bar code, RFID scanner and high-resolution camera allows every stage of the process to be recorded quickly, efficiently and error free.
